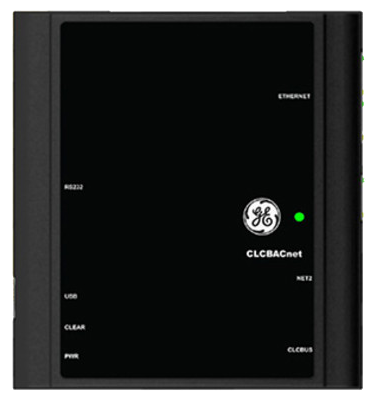

The CLCBNET controller expands the features of a stand-alone Lighting Control System to a fully programmable with computer front-end system, with capability for seamless integration to EMS using the BACnet protocol.
It is a fully programmable native BACnet controller, supporting the BACnet MS/TP, BACnet over Ethernet and BACnet IP.
The CLCBNET maps the lighting system’s objects: relays, analog I/O’s (dimming channels, photocell inputs) and provides control and schedule functionality.
It is a fully programmable native BACnet controller, supporting the BACnet MS/TP, BACnet over Ethernet and BACnet IP.
The CLCBNET maps the lighting system’s objects: relays, analog I/O’s (dimming channels, photocell inputs) and provides control and schedule functionality
Specifications
Communication Ports
CAN lighting network
- Communication speed 40 kbps
- Maximum 99 nodes per CAN segment
Ethernet
- 3-Port 10/100 Switch
- BACnet IP, BACnet Ethernet
USB – 2 USB ports
Inputs
Two push-buttons (Reset, Transfer)
Technology
ARM Processor with internal, Flash and RAM, Real-time clock, Ultra capacitor backup for RTC
Device Address
BACnet - set via software, CAN – set to 100
Connectors
CAN Network 3-pin terminal, Ethernet – 3-port RJ45 connector, Power: 2-pin terminal, BACnet RS485: 3-pin terminal
Wiring Class
Class 2
Power
24 VAC 50/60 Hz, 12VA, 10-28 VDC, 4.2W
Ambient
32° to 131°F (0° to 55°C), 10-90% RH (non-condensing)
Dimensions
5”x5.4”x2.6”
Compliance
CE, FCC
Approvals/Standards
UL 916
