OPC UA Integration: GATEWAYS, SERVICES, RESOURCES

Intro to OPC UA Protocol Integration

The OPC Unified Architecture (OPC UA) is a machine to machine communication protocol for industrial automation developed by the OPC Foundation. Although developed by the same organization as its predecessor, Open Platform Communications (OPC), OPC UA differs significantly. The Foundation's goal for OPC UA was to provide a path forward from the original OPC communications model that would better meet the emerging needs of industrial automation.

The OPC UA Driver allows the FieldServer line of products to transfer data to and from devices over Ethernet using the OPC UA protocol. The OPC UA Driver uses TCP, either connecting to an OPC UA server using regular opc.tcp or securely using https.

UPC UA Logo


QuickServers for the OPC UA Protocol

The OPC UA QuickServer (QS) is a high-performance, fully configurable, and cost-effective protocol gateway for integrating OPC UA devices and Networks into Modbus, BACnet and many other protocols.

The Gateway comes enhanced (500 points) and connects via ethernet ports the the OPC UA system. Chipkin knows this protocol to source code level. We offer expert support (Level 1,2) and configuration from day 1.

Chipkin provides OPC UA Protocol gateways for a wide number of conversions. For a list of Gateways, please click here. Or, please Contact Us for a free consultation.

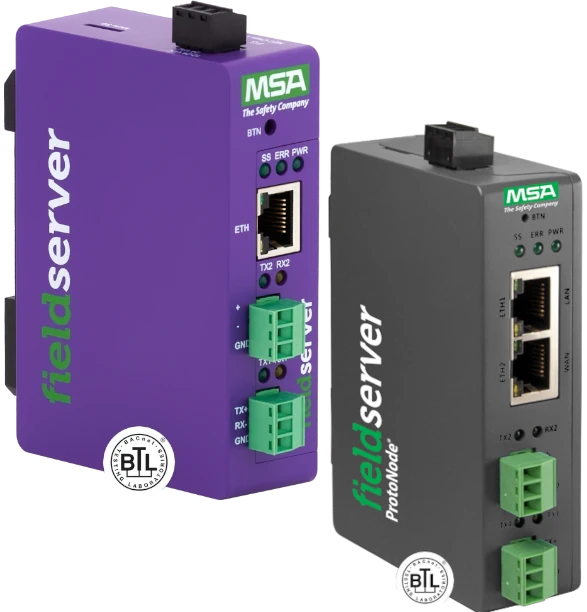

QuickServer Image

Dual-Ethernet Port QuickServer

The Dual Ethernet Port QuickServer is the premium secure QuickServer for those needing the best and most secure networks. Besides being capable of handling everything that the classic QuickServer and the QuickServer can handle, it also contains 2 Ethernet ports, can convert up to 10,000 points and has a lot of new security features. It supports 1 RS-485/RS232 Port, 1 RS485 Port, and two Ethernet ports.

With two Ethernet ports, the dual-port QuickServer allows data to move seamlessly across disparate subnets allowing seamless integration with maximum security.

Multiport Gateway for OPC UA Protocols

The FS-B3510 is one of the FS-X30 Series FieldServers designed to meet the needs of any system integrator.

The FS-B30 Series brings together the powerful FieldServer driver library with state-of-the-art gateway design. It supports 1,000 points which can be updrageded to 10,000 points allowing it to easily handle just about anything with no slowdown in performance.

Chipkin provides OPC UA Protocol gateways for a wide number of conversions. For a list of OPC UA Gateways, please click here. Or, please Contact Us for a free consultation.

B3510 Multiport gateway Image

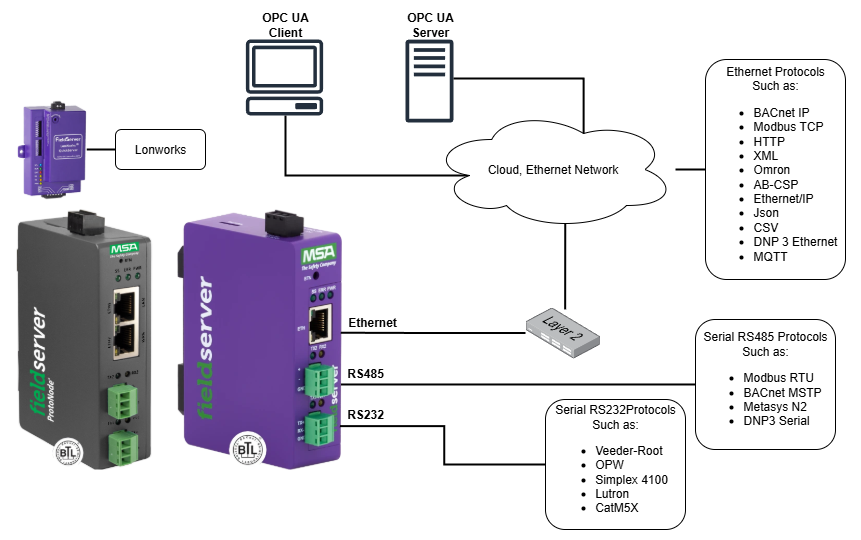

OPC UA Protocol Block Diagram

UPC UA Block Diagram

Quickserver Gateway Image

Chipkin provides OPC UA Protocols gateways for over 200+ protocols! If you are interested in a gateway not listed above, please Contact Us for a free consultation. If we don't have the driver you need, we can make it!

BACnet for field Technicians Image
BACnet for Field Technicians (Free!)

Learning about BACnet? Want to update your BACnet knowledge? This free EBook will guide you through basic and advanced BACnet topics.

You can purchase a hardcopy of this book from Amazon or you can download the BACnet for Field Technicians for free from our website.

FREE CAS BACNET EXPLORER WITH THE PURCHASE OF A BACNET GATEWAY!

Purchase a FieldServer or CAS Gateway from us that contains any BACnet protocol and we will help you test and document the BACnet interface by providing a free full license to the CAS BACnet Explorer and a hardcopy of the BACnet booklet.

The USB key and booklet ships with the product.

Thanks for choosing Chipkin’s protocol gateways, data clients, and integration services to meet your building and industrial automation requirements!

Chipkin™ is a building and industrial automation protocol expert. We develop, configure, install and support gateways (protocol converters), data loggers and remote monitor and controlling applications. Founded in October 2000, Chipkin provides expert solutions for converting BACnet®, Modbus®, and LonWorks®—to name just a few—and enabling interfaces for HVAC, fire, siren, intercom, lighting, transportation and fuel systems. The high-quality products we offer (including those from other vendors) interface with Simplex™, Notifier™, McQuay™, GE™ and many others—so you can rest assured that we will select the most appropriate solution for your application.

With Chipkin you are buying a solution. Our configuration expertise in this field combined with free BACnet and other tools ensure your success; and our customer support via phone, e-mail, and remote desktop tools means that we’re there when you need us. Chipkin is a small responsive company, and we live or die by the quality of our service—and with offices in two-time zones—we can provide support when you need it. Give us a call now!
