The ProSys Lighting Control System is a small network of
relay panels and occupant control switches linked by a 4-wire
dataline. Together, these devices form a reconfigurable
switching platform — one that uses “softwiring” instead of
hardwiring to link occupant switches to relays.

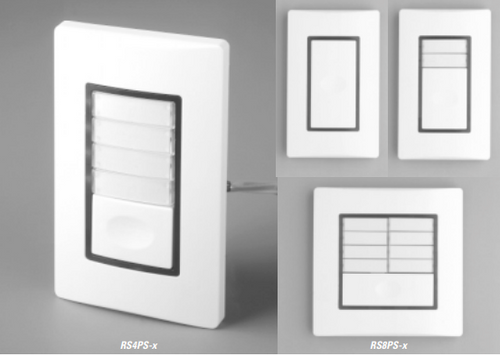

There are four basic configurations of SWS (or dataline switches): the single-gang, 1-, 2- and 4-button RS1PS-x, RS2PS-x and RS4PS-x, respectively, and the two-gang, 8-button RS8PS-x.
Each switch includes a bi-color LED status light for each control button and a locator light. In addition, the 2-, 4- and 8-button units have directories which accept standard 3/8" wide (9mm) labels. The x suffix in the catalog number refers to button and switchplate color: 2 = ivory, 4 = almond, 7 = white and 9 = grey.
ProSys softwired switches are available with a keyenabled override function. The switch will be disabled except when a key is used to activate a 5 minute override period. Dip switch 4 must be in the off position to enable this feature as shown on page 8. Order this feature by adding a -K to the part number for the 1- 2-, 4-, and 8-button switch. For example: RS2PSxK.
Any button on a Softwire Switch may be softwired to:
- Any relay or group of relays within a single relay panel
- A channel within a single relay panel
- The same channel among multiple panels (requires an RCLK8PS Softwired Clock, which also operates as a handheld programmer)
