The CLCCOV12S is a lockable, surface-mount panel cover designed for use with GE LightSweep lighting automation panels. It serves as the front enclosure component for CLC-rated relay panels and provides physical protection, controlled access, and a finished appearance for installed lighting control systems. The CLCCOV12S is intended for panels configured with up to 12 relays and is part of a standardized family of LightSweep panel covers.
Panel covers play a critical role in lighting automation installations by protecting internal components from accidental contact while allowing authorized personnel to access relays, control electronics, and wiring for maintenance or service. The CLCCOV12S is designed to integrate cleanly with the rest of the LightSweep panel assembly, ensuring mechanical compatibility and consistent installation practices.
Panel Cover Sizes and System Compatibility
The CLCCOV series includes multiple cover sizes to match different relay counts within the LightSweep lighting automation system. Each cover is sized to align with the corresponding panel interior and tub, ensuring that relay spacing, mounting points, and access clearances are consistent across installations.

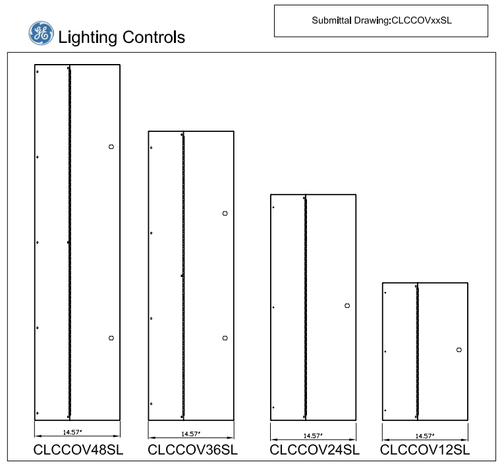

Available LightSweep panel cover sizes include:
- CLCCOV12S – for 12-relay panels
- CLCCOV24S – for 24-relay panels
- CLCCOV36S – for 36-relay panels
- CLCCOV48S – for 48-relay panels
Selecting the correct cover size ensures proper alignment with the internal relay layout and prevents installation issues caused by mismatched enclosure components. The CLCCOV12S is specifically matched to 12-relay LightSweep configurations and should be used only with compatible interiors and tubs.
Role Within the Complete LightSweep Panel Assembly
The CLCCOV12S is one component of a complete LightSweep lighting automation panel assembly. In addition to the cover, a functional panel installation includes a matching interior, power supply, and tub. Each of these components is designed to work together as a single enclosure system.
A typical LightSweep panel assembly consists of:
- Tub (CLCTUBxx) – the rear enclosure mounted to the wall
- Interior (CLCINTERxxxx) – the internal mounting frame for relays and electronics
- Power Supply (RPWRxxx) – provides low-voltage power for relays and control modules
- Cover (CLCCOV12S) – the front, lockable panel cover
The cover completes the enclosure by securing internal components and providing a defined access point for service personnel. Its lockable design helps restrict access to authorized users, supporting both safety and system integrity.
Installation, Access, and Use Considerations
The CLCCOV12S is designed for surface-mounted installations commonly used in commercial and institutional lighting control applications. Once installed, the cover provides a durable barrier that protects relays, wiring, and control electronics from environmental exposure and accidental interference.
Lockable access allows maintenance personnel to open the panel when adjustments, troubleshooting, or upgrades are required, while keeping the system secured during normal operation. This is especially important in shared electrical rooms, public spaces, or facilities with multiple contractors.
By using standardized enclosure components such as the CLCCOV12S, LightSweep panel installations remain consistent across different projects, simplifying documentation, service procedures, and long-term maintenance planning.
CLCCOVxxSL Cover
The CLCCOVxxSL is a surface mounted, hinged, lockable cover for 12, 24, 36, 48 CLC Lighting Automated Panels.
Separating the modules simplifies installation. The Cover can be mounted early to allow conduit installation and rough-in wiring. The interior, which includes the relays and terminations, simply slides into the tub. The lighting circuits and low voltage control wiring can then be terminated and the cover installed.
Specifications
See datasheet
Description: Surface, Hinged, Lockable Cover
Catalog#: CLCCOVxxSL
Operating: 0-55C (32-131F)
Environment: 0-95% RH, non-condensing. Non-corrosive atmhsphere.
Codes: NEMA 1 Rated UL916 Energy Management
Finish: Painted Gray ASA6-1
