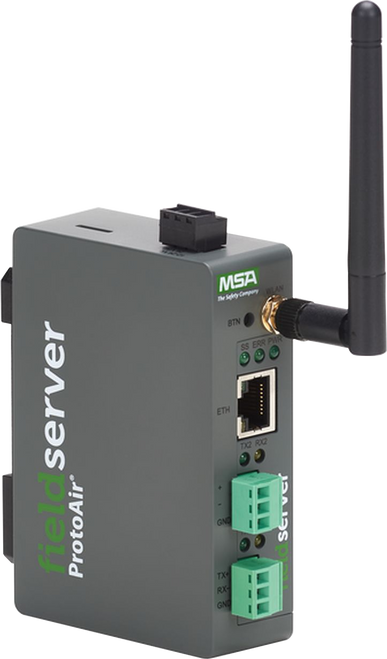

ProtoAir wireless gateways
ProtoAir FPA-W44 wireless gateways provides a cost effective interface to Building Management Systems (BMS) and an immediate IoT cloud interface. The ProtoAir enables OEMs to compete in a broader market by meeting specifications for BMS connectivity. Integrated Grid cloud platform support further enhances the ProtoAir’s value by enabling remote monitoring, control and data visualization. The only protocol wireless gateway with a no cost cloud interface, the ProtoAir dramatically improves time to market and remote site support for OEM field devices.
The ProtoAir has the unique ability to act as a Wi-Fi access point. Users can directly connect their mobile device to a ProtoAir without having to be on the facility's LAN or WAN to access the local applications.
A single ProtoAir wireless gateway can seamlessly connect one or many OEM devices into BMS networks including BACnet, Modbus, EtherNet/IP and others.
Specifications
ProtoAir wireless gateways
Environment
- Operating Temperature: -20 to 70°C (-4 to 158oF)
- Relative Humidity: 10-95% RH non-condensing
Power Requirements
- Intput: 24VAC 0.125A, 9-30VDC 0.25A @12 VDC
- Max Power: 3W
Physical Dimensions
- Dimensions (WxDxH): 4 x 1.1 x 2.7 in (10.16 x 2.8 x 6.8cm)
- Weight: 0.4 lbs (0.2 Kg)
Wi-Fi 802.11 b/g/n
- Frequency: 2.4 GHz
- Channels: 1 to 11 (inclusive)
- Antenna Type: MSA
- Encryption: TKIP, WPA2 & AES
Communication
FPA-W44:
- Baud: 9600, 19200, 38400, 57600, 76800, 115000
- Serial (Galvanic Isolation) Ports: 1 x RS485, 1 x RS232/RS485
- Ethernet Port: 10/100baseT, MDIX, DHCP
FPA-C4X
- Baud: 9600, 19200, 38400, 57600, 76800, 115000
- Serial (Galvanic Isolation) Ports: 1 x RS485, 1 x RS232/RS485
- Ethernet Port: 10/100baseT, MDIX, DHCP
Other
Web configuration
On-board diagnostics
DIN rail mount included
Cellular Frequencies Supported
- NA AT&T LTE: 700(B17/B12/B13) / 850(B5) / AWS1700(B4) / 1900(B2)
- NA Verizon LTE: 700(B13) / AWS1700(B4) / 1900(B2)
- EU LTE: 800(B20) / 900(B8) / 1800(B3) / 2100(B1) / 2600(B7) Rx Diversity and MIMO DL 2x2
- Antenna Type: MSA
- Encryption: TKIP, WPA2 & AES
Approvals
- UL UL 62368-1
- BTL marked and PTCRB and UKCA compliant
- CE and FCC Class Part 15 C
- RoHS3 and WEEE compliant
- CE and FCC Class B & C Part 15
- DNP 3.0 and Modbus conformance tested
- ODVA CONFORMANT
