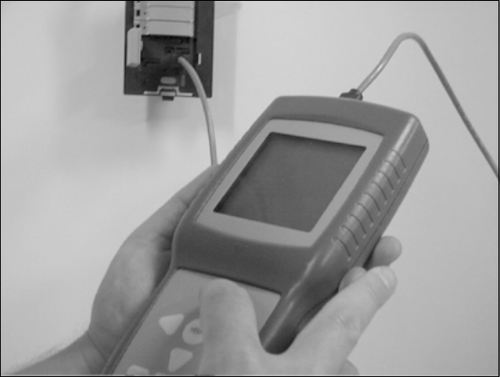

The ProSys Clock (RCLK8PS) is an intelligent
scheduling and programming module designed for
use with the PROSYS system.
A PROSYS network
can accommodate one RCLK8PS.
In scheduling mode, it provides user-selectable
lighting automation scenarios for up to eight global
channels in one network. Using an Occupied/
Unoccupied approach, the RCLK8PS greatly
simplifies scheduling for lighting groups.
In Softwire mode, the module will program the
dataline switches to relays or channels.
The module has a large, clear, 10-line LCD display
with a simple user interface. The module plugs into a
4-pin connector in any PROSYS panel, and is easily
mounted on the DIN rail.
Features:
- Eight global schedule groups
- Time delay overrides
- Blink warning
- Auto/Manual ON
- Astronomical timeclock function
- Leap year, Daylight savings and Holiday schedules
Specifications
- Catalog # - RCLK8PS
- Operating Environment - 0-55 degrees C (32-131 F) 0-95% RH, non- condensing. Non-corrosive atmosphere.
- Weight - 0.5 lbs/0.23 kg
- Power Requirements - 24 VAC from PROSYS relay panel
- Mounting - DIN rail in relay panel
- Codes - UL 916 Energy Management
