Case Study – Metasys N2 to BACnet/IP Integration for a Niagara BMS
Overview
A North American controls integrator needed to connect an existing Johnson Controls Metasys N2 HVAC network to a modern Niagara-based building management system using BACnet/IP.
The site contained primarily Johnson Controls UNT controllers along with several DX9100 controllers communicating over an RS-485 N2 network. Although the controllers were still operating reliably, they could not communicate directly with the site's modern BACnet/IP supervisory system.

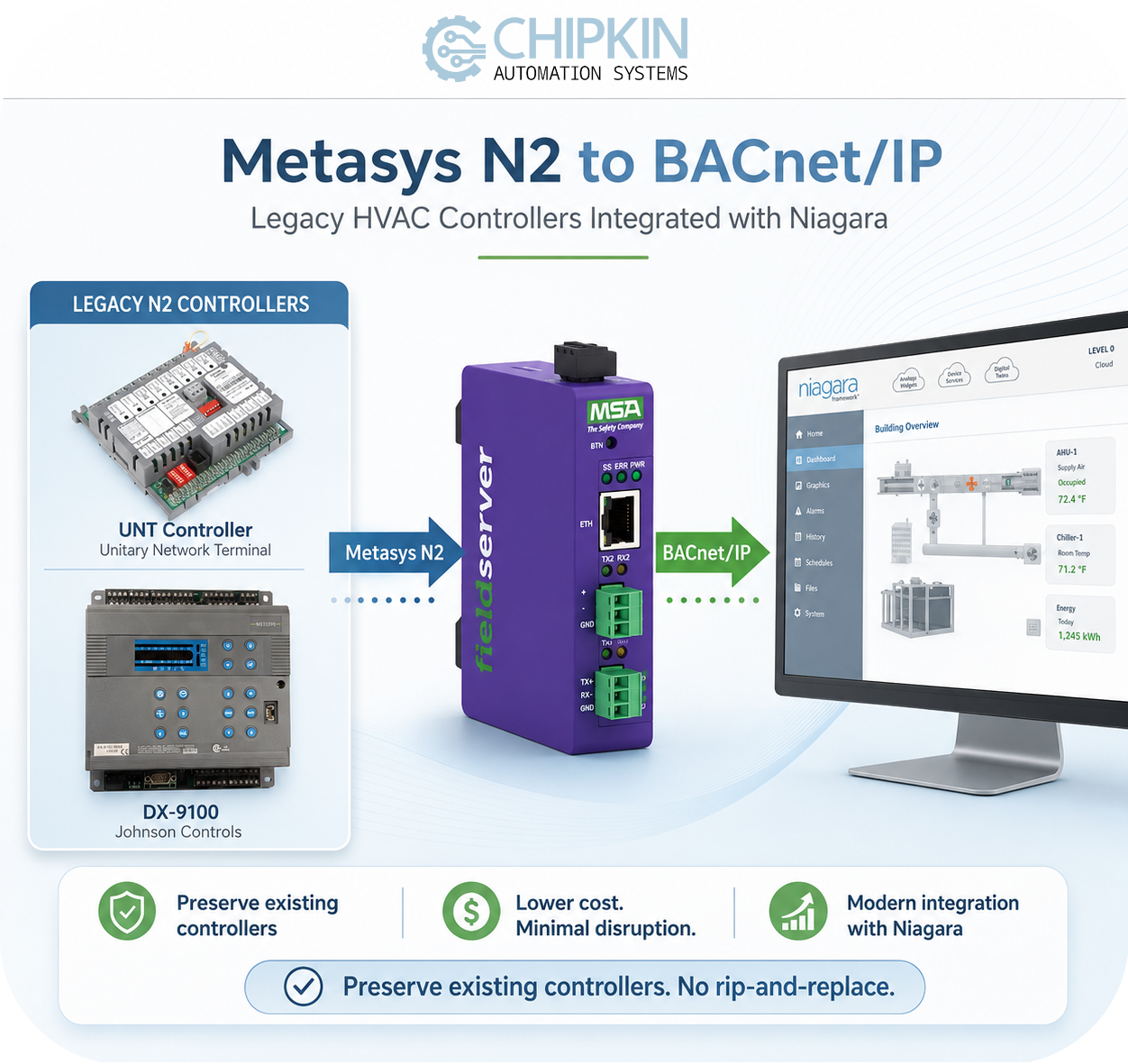

Chipkin used a FieldServer QuickServer to bridge the legacy Metasys N2 network to BACnet/IP, allowing the existing HVAC equipment to remain in service while making its operating data available to Niagara.
The result was a practical modernization path that extended the life of the existing control system without requiring a costly replacement of the installed N2 controllers.
The Challenge
The customer wanted to preserve the site's existing Johnson Controls N2 controllers while integrating their data into a modern Niagara environment.
The network included a mixture of UNT and DX9100 controllers serving heat pumps throughout the building. The QuickServer needed to communicate with these legacy controllers over Metasys N2 and present their points as BACnet/IP objects that Niagara could discover, organize, and use.
The challenge went beyond simply making the devices discoverable. During commissioning, several UNT controllers were visible through the integration, but their point values were not populating correctly. The configuration therefore needed to correctly map the different N2 controllers and their point data so that Niagara received meaningful values from each piece of equipment.
The integration had two primary objectives:
- Convert the existing Metasys N2 HVAC data into a structured BACnet/IP representation for Niagara.
- Ensure that the BACnet objects returned reliable point values from the different legacy N2 controller types.
Chipkin's Approach to the Solution
Chipkin configured the FieldServer QuickServer to communicate with the existing Metasys N2 network over RS-485 and serve the resulting data to Niagara over BACnet/IP.
Metasys N2 to BACnet/IP Integration for a Niagara BMS

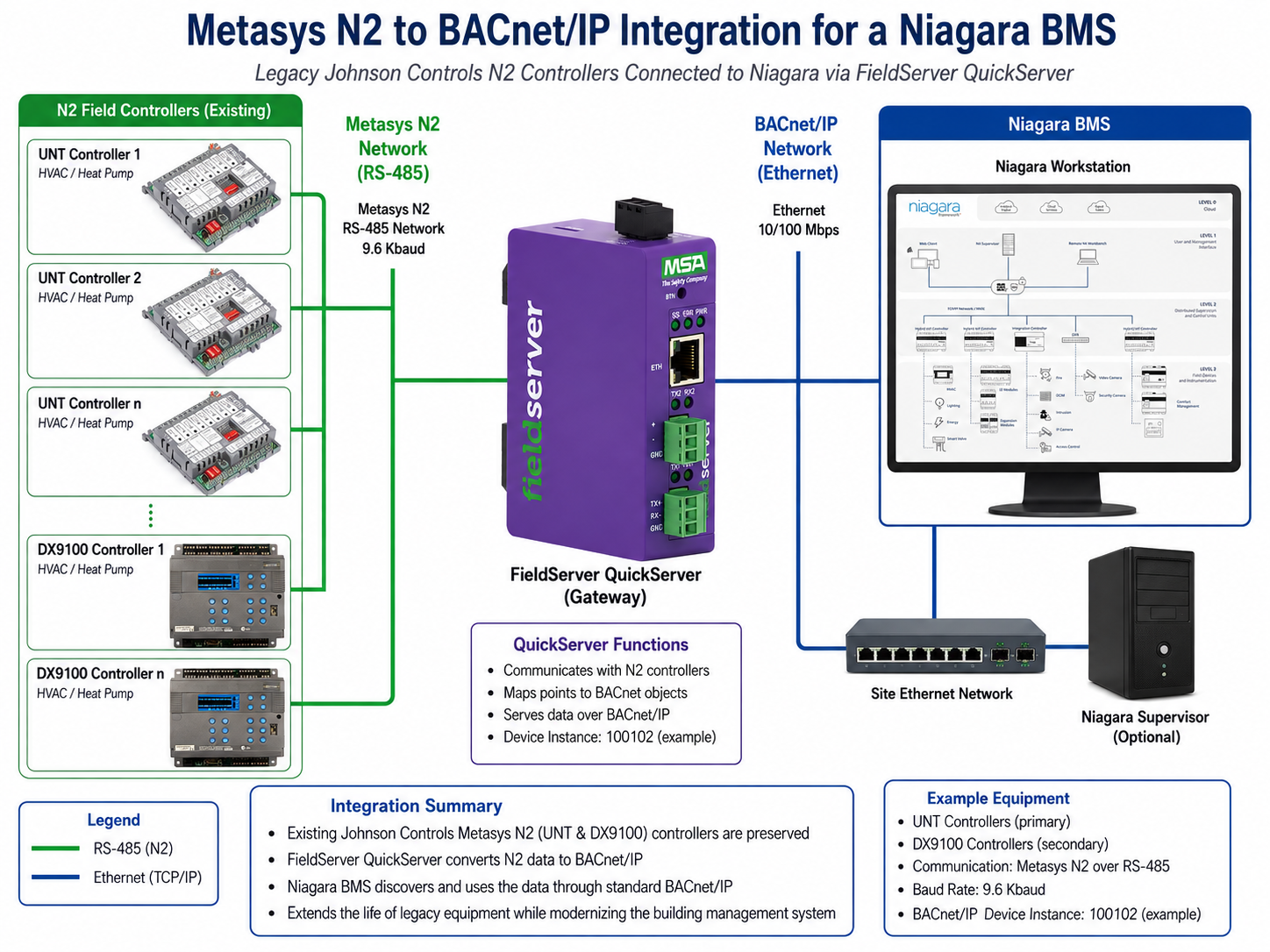

Metasys N2 to BACnet/IP Mapping
The source network consisted primarily of Johnson Controls UNT controllers with several DX9100 controllers operating at 9.6 kbaud. The QuickServer was configured to poll the N2 devices and expose their data as BACnet/IP objects using the BACnet device instance specified for the site.
The BACnet objects were structured so the customer could organize them by equipment in Niagara, including individual heat pumps throughout the site. This provided a cleaner representation of the legacy HVAC equipment for graphics, alarms, trending, and ongoing operation.
Configuration and Point Validation
During commissioning, the customer identified several missing heat pumps and found that many UNT points were not returning values. Chipkin updated the configuration to include the remaining equipment and reviewed the behavior of the affected N2 controllers.
A FieldServer diagnostic was then collected from the operating site so Chipkin could examine the communication and point data in more detail. The review identified incorrect data-type assignments within the configuration. After those data types were corrected, the UNT point values populated properly.
This confirmed an important part of legacy system integration: successful protocol communication alone is not sufficient. The gateway must also correctly model the device and point data so the supervisory system receives usable values.
Results & Customer Advantages
The completed integration allowed the site's existing Johnson Controls Metasys N2 controllers to communicate with the Niagara supervisory system through BACnet/IP.
The final configuration provided complete heat-pump coverage, including the previously missing equipment, and reliable values from the UNT controllers after the data-type mappings were corrected. The customer subsequently confirmed that the issue had been resolved.
Key benefits included:
- Metasys N2 to BACnet/IP integration using a FieldServer QuickServer.
- Continued use of existing UNT and DX9100 controllers without a full field-controller replacement.
- Niagara visibility of legacy HVAC equipment through standard BACnet/IP objects.
- Structured equipment organization for heat pumps and associated control points.
- Reliable point values through correct N2 device and data-type mapping.
- Reduced retrofit cost and disruption compared with replacing the existing control system.
The project demonstrated how a FieldServer QuickServer can extend the useful life of a legacy Johnson Controls Metasys N2 installation by providing a modern BACnet/IP interface for Niagara while preserving the existing field equipment.
FAQ
Can Johnson Controls Metasys N2 controllers be integrated with BACnet/IP? +
Yes. A FieldServer QuickServer can communicate with legacy Johnson Controls Metasys N2 controllers over RS-485 and expose their data as standard BACnet/IP objects. This allows existing N2 equipment to be integrated into a modern BACnet building management system without replacing the field controllers.
Can Metasys N2 controllers be integrated with a Niagara BMS? +
Yes. The QuickServer converts Metasys N2 data into BACnet/IP objects that can be discovered and used by Niagara. This allows legacy HVAC equipment to be incorporated into Niagara graphics, alarms, trends, and supervisory workflows.
Does upgrading a Metasys N2 system require replacing the existing controllers? +
Not necessarily. If the existing N2 controllers are still operating correctly, a protocol gateway can provide a modern BACnet/IP interface while allowing the installed controllers and field equipment to remain in service. This can reduce retrofit cost, downtime, and disruption.
Can FieldServer QuickServer integrate Johnson Controls UNT and DX9100 controllers? +
Yes. In this project, the Metasys N2 network consisted primarily of Johnson Controls UNT controllers along with several DX9100 controllers. The QuickServer communicated with the N2 devices and exposed their operating data to Niagara over BACnet/IP.
Why can BACnet points be discovered but show no values? +
BACnet discovery confirms that the devices and objects are visible, but the underlying protocol mappings must also be configured correctly. Incorrect controller definitions, point mappings, or data types can result in objects being discovered while their values remain unavailable. In this project, correcting the data-type assignments allowed the UNT point values to populate properly.
What does a Metasys N2 to BACnet/IP gateway do? +
A Metasys N2 to BACnet/IP gateway communicates with legacy N2 controllers over RS-485, maps their point data into BACnet objects, and serves those objects over Ethernet using BACnet/IP. This allows a modern BMS such as Niagara to monitor and use data from equipment that does not provide native BACnet/IP connectivity.
